The HLM-2450WB employs a 24-inch wide LCD panel and achieves thin size, light weight, and low power consumption. Supporting Multi-format SDI input, also DVI-D and VBS inputs as standard and 3G-SDI input as an option. By employing a WUXGA (1920 x 1200) LCD panel which has wide viewing angle, high brightness, high contrast, quick motion response and superb color reproduction, the HLM-2450WB achieves real pixel allocation without resizing and superb gradation characteristics for various applications, including use in non-linear editing.
High Performance Liquid Crystal Panel
The monitor uses a Full HD widescreen 24-inch (1920x1200) LCD panel with a wide viewing angle (178 degree H/V), high contrast ratio(1000:1), fast response time and faithful color reproduction.
Diverse input sources
The monitor is standard equipped with two SDI signal (compatible with both HD/SD 4:2:2) inputs and one analog composite signal input. For PC signals (VGA/SVGA/XGA/WXGA/UXGA/WUXGA), DVI-D input, 3G-SDI input are available as option.
Compatibility with embedded audio
Standard equipped with an embedded audio feature, the embedded audio signals multiplexed with HD SDI signal or SD-SDI (4:2:2) signal can be automatically recognized and the audio output can be heard through the built-in stereo speakers or stereo headphones. The monitor also has a standard embedded audio level meter display on the screen. 5.1ch audio down mix signal can be output.
Built-in marker
4:3 (16:9 mode), 13:9, 14:9, 15:9 and 16:9 (4:3 mode), 1.85:1 (16:9 mode) and 2.35:1 (16:9 mode) line markers can be displayed. The monitor also comes standard with 80%, 85%, 88%, 90%, 93%, 95% and 100% area markers in addition to five-part split and ten-part split crosshatch markers useful for location alignment.
User marker display function

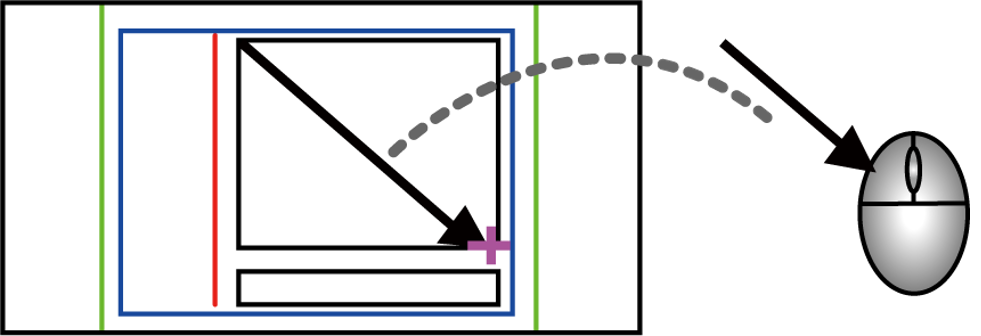

Up to 10 different user markers, such as line and box markers, are presettable pixel by pixel to your desired positions and sizes. The line and box drawing settings can be easily made with not just the switch but also the USB mouse. Resulting complicated data may also be saved on a USB memory so that the data can be copied to another monitor or stored in a PC. This function is optimum for positioning in editing the layout and its display for various types of information such as teleshopping. * Patent pending.
Shadow function
The shadow function is to shade the area other than a 4:3 (16:9 mode), 13:9, 14:9, 15:9 or 16:9 (4:3 mode) marker area on images. The shadow contrast can be set at 0%, 20%, 40% or 60% on the MENU. The use of this function allows you to instantly visualize the image area when converting images with an aspect ratio of 16:9 to those with an aspect ratio of 4:3 or vice versa. This shadow function can be turned on/off by remote control and prompt switching is therefore realized.
Various built-in test signal
The monitor is standard equipped with color bar signal, grayscale signal with pluge pattern, and window signal. Various adjustments can therefore be made on the monitor alone.
Time code display function

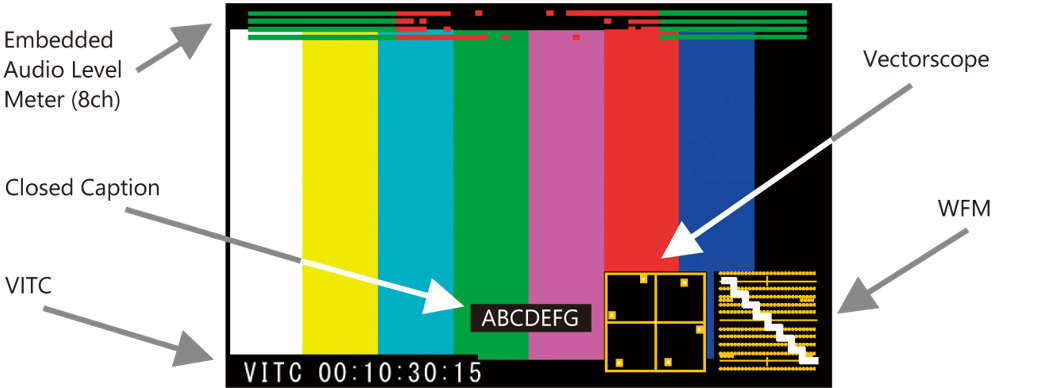

It is possible to display the time code (VITC) multiplexed into SDI signal on the screen. The display comes in two sizes, large and small, and its brightness in three levels. All the picture elements of an input signal are displayed 1:1 according to the pixels of the LCD panel without scaling the incoming signal (enlarging or reducing the input signal according to the LCD pixels). This function is useful in checking transmitted input signals for pixel defects, camera CCD's scratches, etc.
Waveform monitor/Vector scope display functions
Waveform monitor of brightness signal can be displayed. The display comes in two sizes, NORMAL and SMALL, and its brightness in three levels. The waveform can also be displayed in any of three selectable positions and in one of two colors: GREEN and WHITE. The vector scope can also be readily displayed.
2-picture split display function
A previously captured still image and a currently incoming moving image are displayed split onscreen. Just one monitor serves to compare the pictures from two cameras at once on its screen.
Dot-by-dot display function
All the picture elements of an input signal are displayed 1:1 according to the pixels of the LCD panel without scaling the incoming signal (enlarging or reducing the input signal according to the LCD pixels). This function is useful in checking transmitted input signals for pixel defects, camera CCD's scratches, etc.
External memory function
Various data (MENU settings, PRESET data, etc.) can be saved on a USB memory and copied to a PC, on which the data is ready to manage. Such data may also be copied to another monitor. * Keep in mind that when copying the PRESET data to another monitor, they may be different from monitor to monitor.
Auto setup function
Optional Auto setup prove (ASP-100) can be used with this monitor.
| Display panel |
|---|
| Viewing Area |
24-inch Full-HD |
|---|
| Aspect Ratio |
4:3/16:9 |
|---|
| Rack Mountable Space |
10RU |
|---|
| Number of pixel |
1920×1200 |
|---|
| Viewing angle |
(178° H/V) |
|---|
| Contrast Ratio |
1000:1 |
|---|
| Input signal |
VBS x 2
Y,Pb,Pr / RGB x1(option)
Multi-SDI x2
3G Multi-SDI x2(option)
PC input x1(option)
DVI-D input x1
Embedded signal available
Analog Audio x2 available |
|---|
| Voltage |
|---|
| Power Requirement |
AC100~120V±10%, AC200~240V±10% |
|---|
| Power Consumption |
AC : 107W |
|---|
| Dimensions |
W562xH398xD101.3mm |
|---|
| Weight |
9.3kg(w/o satand) |
|---|
| Operating Temperature |
0~40°C |
|---|
| Operating humidity |
20~85%(non-condensing) |
|---|
| Storage temperature |
-10~50°C |
|---|
| Storage humidity |
-5~85%(non-condensing) |
|---|
| Accessories(standard) |
Operation Manual / parallel Remote Connector /AC cable |
|---|
